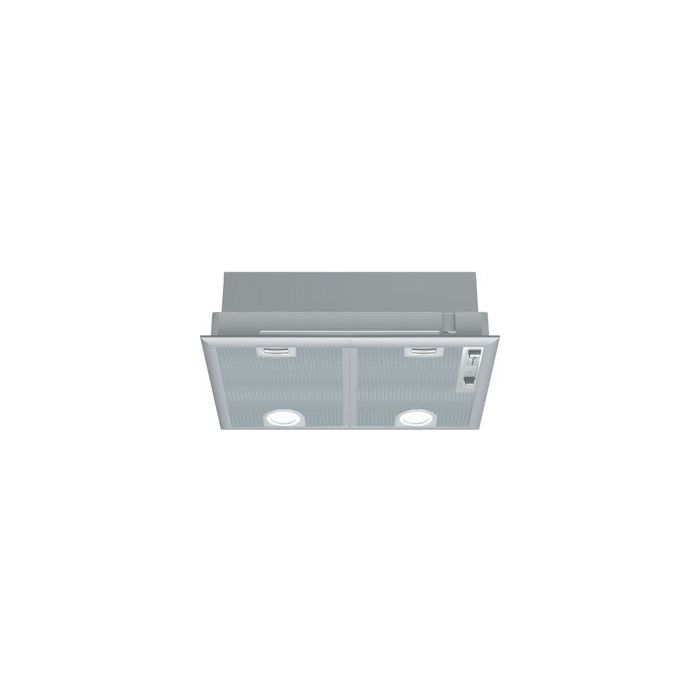

Neff D5655X1GB, Canopy cooker hood

c rating
  • ColourMetallic silver
  • Energy RatingC
  • Air Flow Boost618.0
  • Appliance Current (A)10
  • Appliance Frequency (Hz)50
  • Appliance Voltage (V)220-240
  • Approval CertificatesCE, E17D UKCA marking, VDE
  • Boost Position Air Extraction618
  • Boost Position Output Recirculating395.0
  • Construction TypeBuilt-In
  • Cord Length130
  • Fluid Dynamic Efficiency15.7
  • Fluid Dynamic Efficiency ClassD
  • Grease Filter MaterialWashable aluminium
  • Grease Filter TypeKassette
  • Grease Filtering Efficiency86.7
  • Grease Filtering Efficiency ClassB
  • Installation TypeBuilt-In
  • Lighting Efficiency66.4
  • Lighting Efficiency ClassA
  • Max Air Flow363
  • Max Niche Width500
  • Max Output Air Extraction363
  • Max Output Recirculating Air268
  • Min Air Flow196
  • Min Niche Width500
  • Motor LocationIntegrated motor in hood body
  • Niche Depth350
  • Noise Level56
  • Noise Level Boost Position68
  • Number of Lights2
  • Number of Motors2
  • Operating ModeConvertible
  • Plug TypeGB plug
  • Sound Power Boost68
  • Sound Power Max Speed56
  • Sound Power Min Speed38
  • Type of Control / AppliancesMechanical
  • Type of Control SettingsSlide switch
  • TypologyBuilt-in/Built-under
  • Warranty Duration2
  • Manufacturer Guarantee1 year
  • EAN4242004237136
£265.00
Only 1 left
Rapid delivery available
c rating
Key performance features:
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A+++ to D)
  • Extraction rate according to EN 61591 ø 15 cm:
  • max. Normal use362m³/h
  • Intensive618 m³/h
  • Noise max. Normal Level: Noise, max. speed in normal us: 56 dB dB*
Features
  • Slide control operation
  • 3 speeds plus intensive
  • 2 x LED spot 2.15W (low volt)
  • Colour Temperature: 3500 K
  • 2 metal grease filter cassettes
Design
  • For installation in a chimney or unit, above a hob
  • Canopy hood
  • Mechanical controls
Performance/technical information
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction charcoal filter (accessory) needed
  • Max. extraction rate: 618 m3/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
  • Max. normal use:56dB(A) re 1 pW
  • Intensive:68 dB(A) re 1 pW
  • Power rating: 206 W
  • Light Intensity: 438 lux
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 255-255 x 530 x 380 mm
  • Dimensions recirculating (HxWxD): 255-255 x 530 x 380 mm
  • Mounting dimensions: width: 50 cm, depth: 35 cm
  • Blower Efficiency Class: D*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 79.8 kWh/year*
Optional accessories
  • Recirculating kit Z5155X0
More Information
Manufacturer Neff
GTIN 4242004237136
Colour Metallic silver
Model Number D5655X1GB
Energy Rating C
Grease Filtering Efficiency Class B
Number of Motors 2
Number of Lights 2
Grease Filter Type Kassette
Grease Filter Material Washable aluminium
Max Air Flow 363
Min Air Flow 196
Air Flow Boost 618.0
Sound Power Max Speed 56
Sound Power Min Speed 38
Sound Power Boost 68
Noise Level Boost Position 68
Max Output Air Extraction 363
Boost Position Air Extraction 618
Max Output Recirculating Air 268
Boost Position Output Recirculating 395.0
Warranty Duration 2
Typology Built-in/Built-under
Operating Mode Convertible
Motor Location Integrated motor in hood body
Fluid Dynamic Efficiency 15.7
Fluid Dynamic Efficiency Class D
Lighting Efficiency 66.4
Lighting Efficiency Class A
Grease Filtering Efficiency 86.7
Plug Type GB plug
Cord Length 130
Type of Control / Appliances Mechanical
Type of Control Settings Slide switch
Construction Type Built-In
Installation Type Built-In
Appliance Current (A) 10
Appliance Voltage (V) 220-240
Appliance Frequency (Hz) 50
Approval Certificates CE, E17D UKCA marking, VDE
Niche Depth 350
Noise Level 56
Max Niche Width 500
Min Niche Width 500
Is Soft Bundle No
Is On Display false
Expired Status No
