Key performance features:

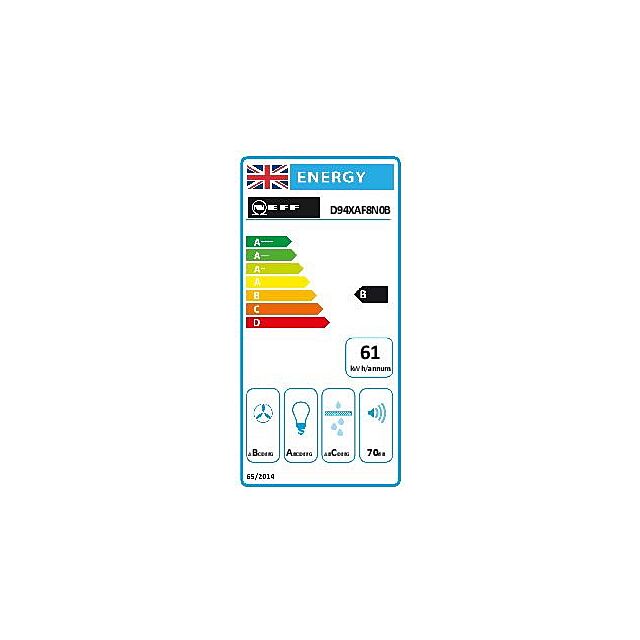

- Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
- Extraction rate according to EN 61591 max. 610 m³/h
- Noise max. Normal Level: Noise, max. speed in normal us: 70 dB dB*
- 3 power levels via rotary switch, retractable
- White with LED backlit glass panel
- 2 x LED 2.5W
- Colour Temperature: 3500 K
- Filter cover glass, metal grease filter
- 2 metal grease filter cassettes
- Installation: Cupboard 90 cm
- Adjustable glass visor for additional vapour capture
- Filler strip for an individual depth adjustment in cupboard up to maximum 350 mm.
- Mechanical controls
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 610 m3/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 70 dB(A) re 1 pW
- Power rating: 255 W
- Light Intensity: 76 lux
- Electrical cable length 1.5 m
- Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
- Dimensions (HxWxD): 356 x 894 x 310 mm
- Built-in dimensions (HxWxD): 356 x 862 x 310-350 mm
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: C*
- Average Energy Consumption: 61 kWh/year*
- Recirculating kit Z51IBU0X0
| Is Soft Bundle | No |
|---|---|
| Warranty Type | YR |
| Manufacturer | Neff |
| Diameter of Air Outlet | 150 |
| Is On Display | false |
| GTIN | 4242004243632 |
| Colour | Stainless Steel |
| Model Number | D94XAF8N0B |
| Expired Status | No |
| Energy Rating | B |
| Grease Filtering Efficiency Class | C |
| Number of Motors | 1 |
| Number of Lights | 2 |
| No Return Air Flow Flap | Yes |
| Height without Chimney | 60 |
| Grease Filter Type | Kassette |
| Grease Filter Material | Washable aluminium |
| Max Air Flow | 610 |
| Min Air Flow | 230 |
| Air Flow Boost | 0.0 |
| Sound Power Max Speed | 70 |
| Sound Power Min Speed | 49 |
| Max Output Air Extraction | 610 |
| Max Output Recirculating Air | 585 |
| Warranty Duration | 2 |
| Typology | Built-in/Built-under |
| Type of Light | LED |
| Operating Mode | Convertible |
| Chimney Material | Stainless steel |
| Motor Location | Integrated motor in hood body |
| Fluid Dynamic Efficiency | 26.7 |
| Fluid Dynamic Efficiency Class | B |
| Lighting Efficiency | 68.1 |
| Lighting Efficiency Class | A |
| Grease Filtering Efficiency | 75.1 |
| Cord Length | 150 |
| Type of Control / Appliances | Mechanical |
| Type of Control Settings | None, rotary switch, retractable |
| Construction Type | Built-In |
| Installation Type | Built-In |
| Appliance Voltage (V) | 220-240 |
| Appliance Frequency (Hz) | 50; 60 |
| Approval Certificates | CE |
| Niche Depth | 310 |
| Noise Level | 70 |
| Max Niche Width | 862 |
| Min Niche Width | 862 |
Write Your Own Review

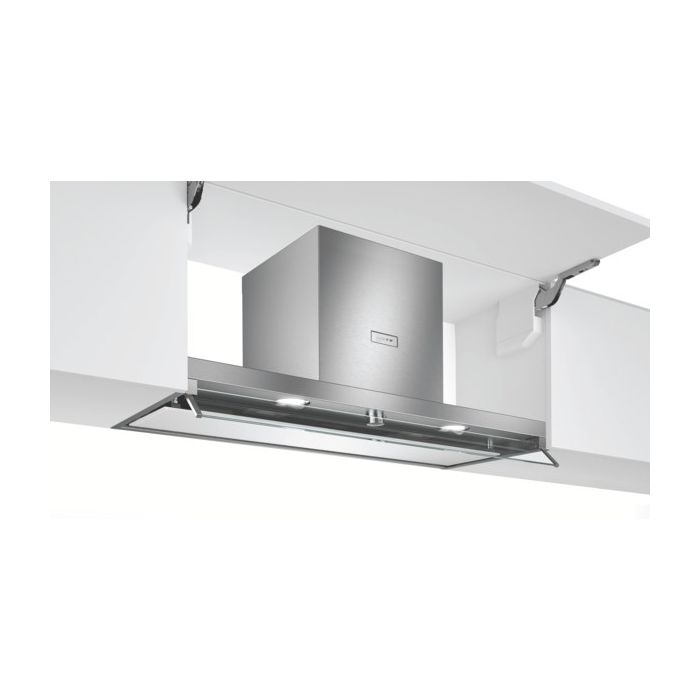

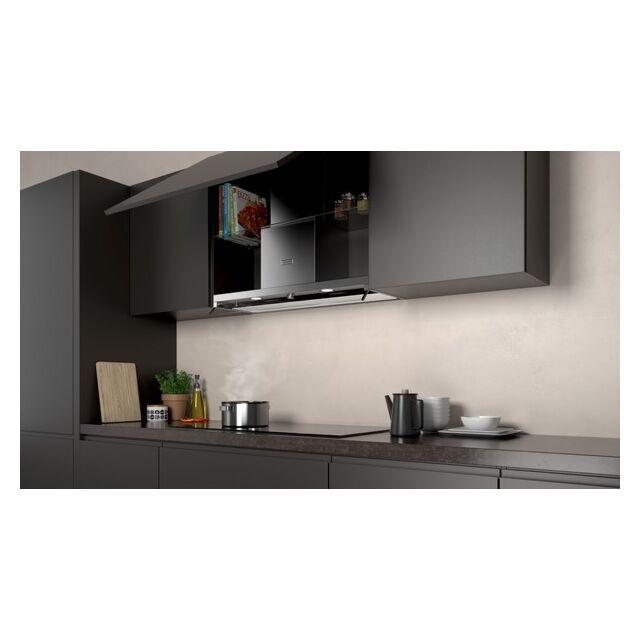

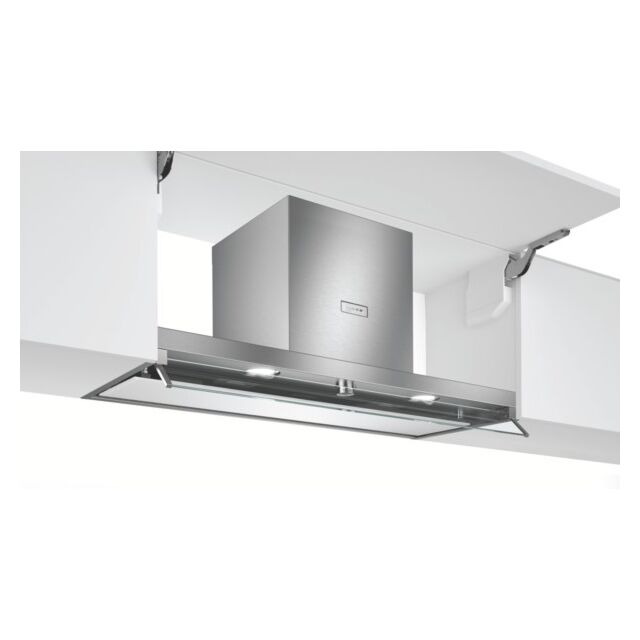

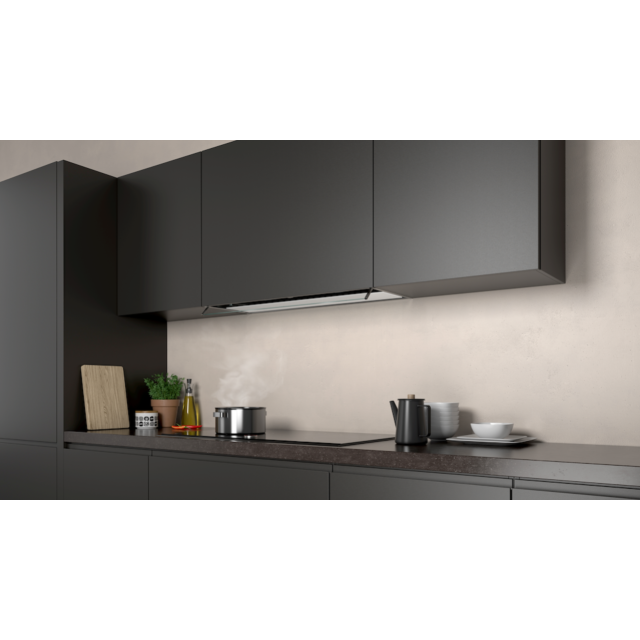

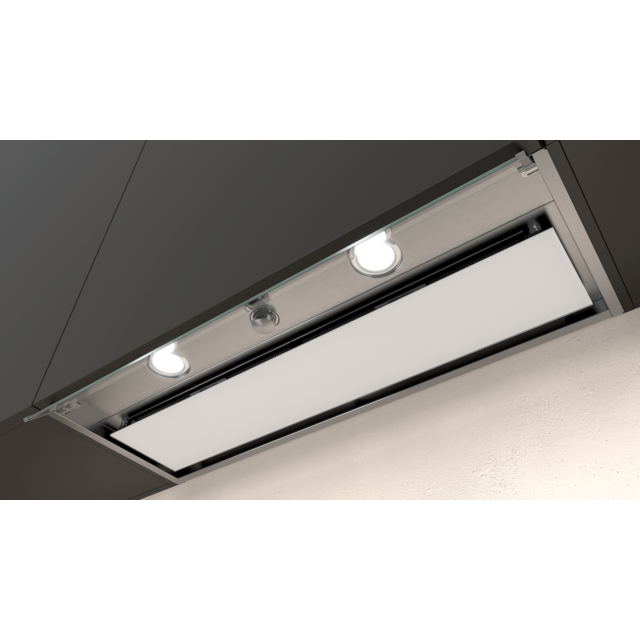

Neff D94XAF8N0B, Integrated Design Hood
Retail price
£519.00
Approximate Delivery 3-5 Days
Colour
Stainless steel
Manufacturer Guarantee
1 year
Energy Rating
B
EAN
4242004243632
